Parent Layer: Storm

Name: Storm Catchbasins

Display Field: GIS.SPATIAL.DRN_Catchbasins.assetid

Type: Feature Layer

Geometry Type: esriGeometryPoint

Description: This table contains information describing different types of drainage catchbasin and their locations in the District of Lake Country. Catchbasin is designed to catch and retain matter that would not pass readily through the drainage at the side of the road. Each catchbasin is assigned to a unique AssetID for documentation and asset management purpose. Along with its properties, catchbasins also have location description, relevant As-Built Drawings information under the comments, the ownership, the current status, the important dates and the associated personnels.

Copyright Text: District of Lake Country, Regional District of Central Okanagan

Default Visibility: true

MaxRecordCount: 2000

MaxSelectionCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 324502.6233000001
YMin: 5542101.374
XMax: 334376.3300000001
YMax: 5558001.932
Spatial Reference: 26911  (26911)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: GIS.SPATIAL.cgStormCatchBasinsClass.TypeField
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: Double Inlet
  Label: Double Inlet
  Description: N/A
  Symbol:

• Value: Satellite CatchBasin
  Label: Satellite CatchBasin
  Description: N/A
  Symbol:

• Value: Satellite CatchBasin Barrel
  Label: Satellite CatchBasin Barrel
  Description: N/A
  Symbol:

• Value: Side Inlet
  Label: Side Inlet
  Description: N/A
  Symbol:

• Value: Top Inlet
  Label: Top Inlet
  Description: N/A
  Symbol:

• Value: <Null>
  Label: Not Specified
  Description: N/A
  Symbol:

Transparency: 0
Labeling Info:

Feature Draw Order:

N/A

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: true

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• GIS.SPATIAL.DRN_Catchbasins.objectid ( type: esriFieldTypeOID, alias: OBJECTID )
• GIS.SPATIAL.DRN_Catchbasins.rotation ( type: esriFieldTypeDouble, alias: Rotation )
• GIS.SPATIAL.cgStormCatchBasinsClass.IDField ( type: esriFieldTypeString, alias: Asset ID, length: 20 )
• GIS.SPATIAL.cgStormCatchBasinsClass.OwnershipField ( type: esriFieldTypeString, alias: Owner, length: 40 )
• GIS.SPATIAL.cgStormCatchBasinsClass.TypeField ( type: esriFieldTypeString, alias: Type, length: 20 )
• GIS.SPATIAL.cgStormCatchBasinsClass.OMSUrl ( type: esriFieldTypeString, alias: Link to Cartegraph, length: 255 )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

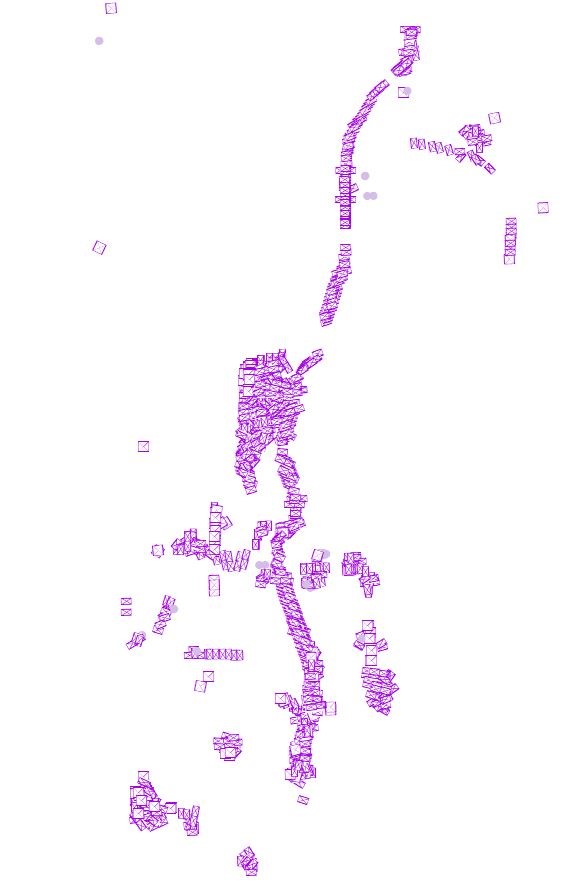

  Iteminfo   Thumbnail   Metadata
