Parent Layer: Storm

Name: Storm Channels

Display Field: GIS.SPATIAL.DRN_StormChannels.name

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description: This table contains information describing different types of drainage open channels and their locations in the District of Lake Country. A drainage open channel is used for discharing the stormwater into a stream or ditches in the urbanised area. Each drainage open channel is assigned to a unique AssetID for documentation and asset management purposes. Along with the properties, the drainage open channels may also have location description, the relevant As-Built drawings information under the comments, the current status, the ownership information, the important dates and the associated personnels if available.

Copyright Text: District of Lake Country, Regional District of Central Okanagan

Default Visibility: true

MaxRecordCount: 2000

MaxSelectionCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 324264.875
YMin: 5541874.1205
XMax: 340300.9930999996
YMax: 5558936.0258
Spatial Reference: 26911  (26911)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: GIS.SPATIAL.cgStormChannelsClass.TypeField
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: <Null>
  Label: Not Specified
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [76, 0, 115, 255]
  Width: 1
• Value: Ditch
  Label: Ditch
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 112, 255, 255]
  Width: 1
• Value: Major Drainage Course
  Label: Major Drainage Course
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 112, 255, 255]
  Width: 2
• Value: Minor Drainage Course
  Label: Minor Drainage Course
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 112, 255, 255]
  Width: 1
Transparency: 0
Labeling Info:

Feature Draw Order:

N/A

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• GIS.SPATIAL.DRN_StormChannels.OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• GIS.SPATIAL.cgStormChannelsClass.IDField ( type: esriFieldTypeString, alias: Asset ID, length: 20 )
• GIS.SPATIAL.cgStormChannelsClass.TypeField ( type: esriFieldTypeString, alias: Type, length: 30 )
• GIS.SPATIAL.cgStormChannelsClass.OMSUrl ( type: esriFieldTypeString, alias: Link to Cartegraph, length: 255 )
• GIS.SPATIAL.cgStormChannelsClass.LiningMaterialField ( type: esriFieldTypeString, alias: Lining Material, length: 20 )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

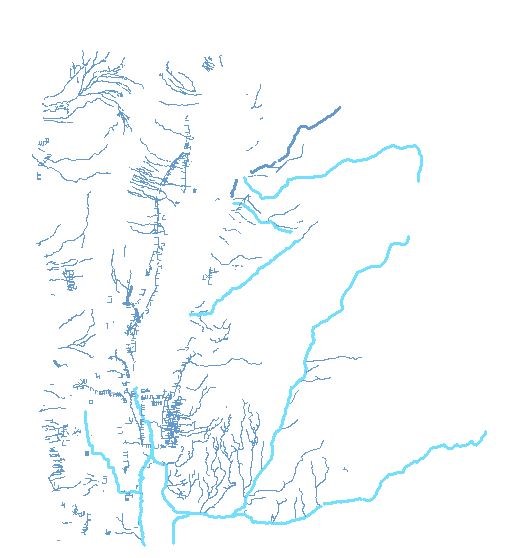

  Iteminfo   Thumbnail   Metadata
